EN 589 6.3 Anex A Odour Test Instrument for Liquefied Petroleum Gas (LPG)

Ask Lasest Price
Brand Name :	AI
Model Number :	AIC589-6.3
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100 sets per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

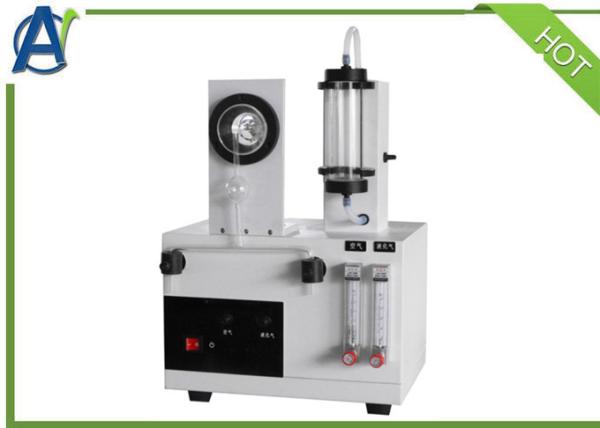

EN 589 6.3 Anex A Odour Test Instrument for Liquefied Petroleum Gas (LPG)

I.Introduction

The odour of commercial liquefied petroleum gas (LPG) is usually caused by unsaturated hydrocarbons, sulfur-containing compounds, or added odorants. This instrument describes a method for evaluating the odor of commercial LPG.

Test method:A liquefied gas sample that has been completely vaporized is diluted with purified air to achieve a concentration of the target gas in the mixture that is 20% of its lower explosive limit. At least three operators should be involved to assess the odor of the mixed gas.
Note: The lower explosive limit of the gas in air is a volume fraction of 1.9% for butane and 2.4% for propane.

II.Main features

1. This LPG Odour Test Instrument has a set of standard air purifier, 200ml;
2. Low-noise diaphragm air pump with flowmeter adjustment is supplied with the Odour tester for liquefied gas sample ;
3. The liquefied gas sample odour tester Gas mixing bulb with a nozzle.
4. The Odour test instrument is made of cold-rolled steel plate, with a surface treated by electrostatic spray plastic, which is corrosion-resistant and easy to clean.

III.Technical Specifications

1	Applicable standards	GB19159,EN 589 6,3 Anex A
2	Flow range	Air: 5~15L/min Measuring gas: 5~150L/min
3	Power supply	AC220V 50HZ
4	Flow controlling method	flowmeter

Factory view
