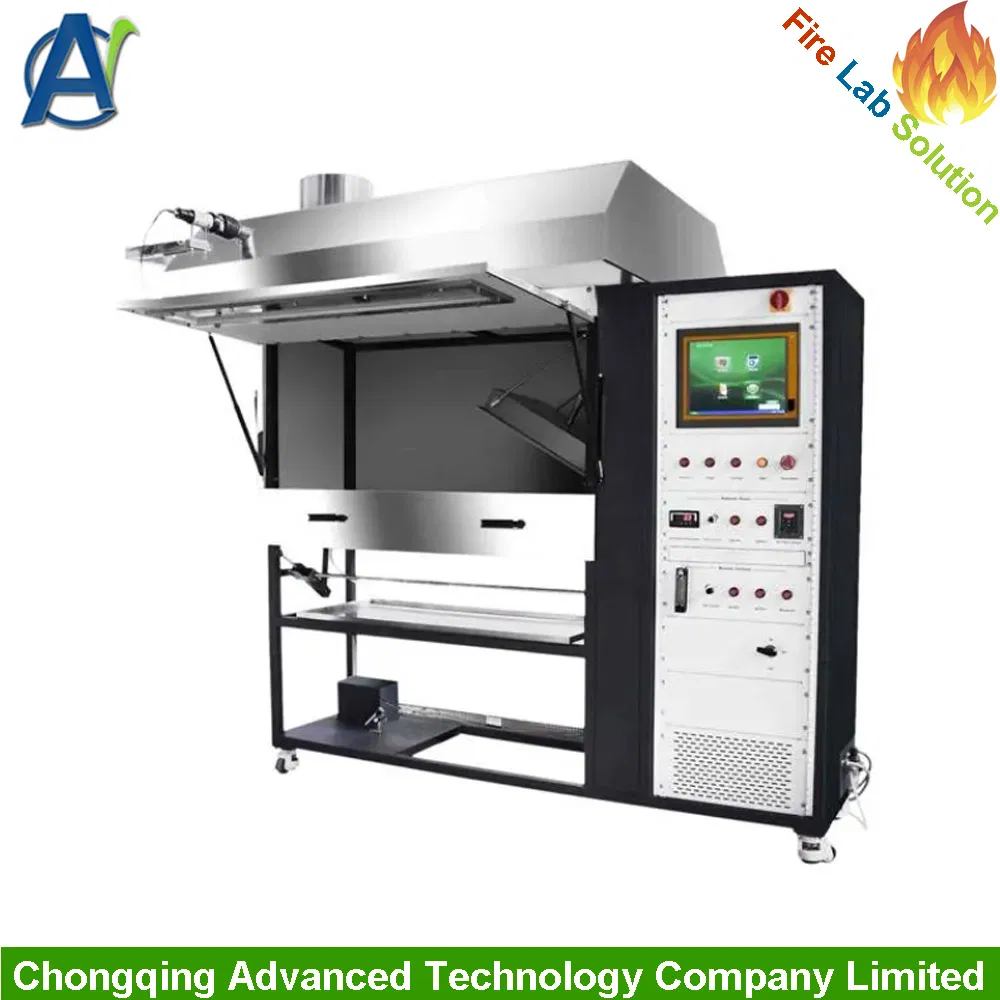

ENISO 9239-1 Floor Radiant Panel Testing Equipment for Floor
Materials
Critical Radiant Flux is the main parameters of the fire risk for
flooring materials.It reflects the burning and spreading ability of
flooring material specimen under external heat radiation
conditions.It is an important index of combustion classification
for building products.
According to ISO9239-1,2 and GB/T 11785-2005 requirements,this
Flooring Radiant Panel Test Apparatus measures the critical radiant
of combustion floor coverings, through the radiation environment of
test chamber. It is can also be used to measure the critical
radiation of the cellulose insulation floor material.
Standard:
ISO 9239-1: Flooring fire reaction test - Part 1: Combustion
performance of flooring materials tested by radiant heat;
ASTM E 648: Critical Radiant Flux of Floor standard test - covering
system uses radiant heat energy;
ASTM E 970: Using a Radiant Heat Energy Source, test insulation
floor insulation standard test for Critical Radiant Flux using a
radiant heat energy.
NFPA 253: Standard Test Method for using radiant heat energy, test
plates overlay system Critical Radiant Flux.
Installation requirements
| 1 | Electrical | AC220V±10%, 50Hz;5KW |
| 2 | Ambient Temperature | Operating 10°C to 35°C |
| 3 | Dimensions | Control box: 600(W)×750(D)×1600(H)mm Test part:Length1.4× width1.0× High2.2 M³ |
| 4 | Gas Supplies | Propane and compressed air |
| 5 | Weight | 350KG |
Main features
1, All structural components of flooring radiant panel tester are
made of stainless steel, nice appearance, corrosion resistance;
2, The radiation source is a porous ceramic heat radiating plate
300mmX450mm, tilted 30 °;
3, The Flooring Radiant Panel Test Apparatus adopts imported
calorimeter from US Medtherm company, range 50KW /m;
4, Igniters diameter of 0.7mm from the bottom of the center line of
each 60-degree position according to standard request.
5, The standard plate is made of thickness 20 ± 1mm, density 850 ±
100kg / m³ without coating made of calcium silicate board; size
1050X250mm
6, Small stainless steel auxiliary ignition burner ignited sample.
7, Imported flow control meter from Japan, precise control of the
flow of propane
8, ThisFlooring Radiant Panel Test Apparatus is equipped with air
blower providing air, mixed gas through the venturi mixing test
gas,
9, The specimen holder is made of stainless steel and an overall
dimension of 1140mm x 320 mm.
Optical system
1, The optical system comprising a light source color temperature
is 2900 ± 100 K incandescent,lightreceiving silicon photodiode with
an optical path test shutter, 0% and 100%, to facilitate the use of
calibration;
2, The Flooring Radiant Panel Test Apparatus adopts imported light
battery module measuring light attenuation. The system
automatically calculates and generates a light transmittance curve
translucent; printable Scribble
3, One button automatic and five level calibration system by
computer.
Thermal radiation system
1, Heat radiation pyrometer accuracy of ± 0.5 ºC, away from the
radiation board about 1.4m;
2, Radiation pyrometer sensitivity constant in the wavelength range
1um ~ 9um;
3, High-performa
