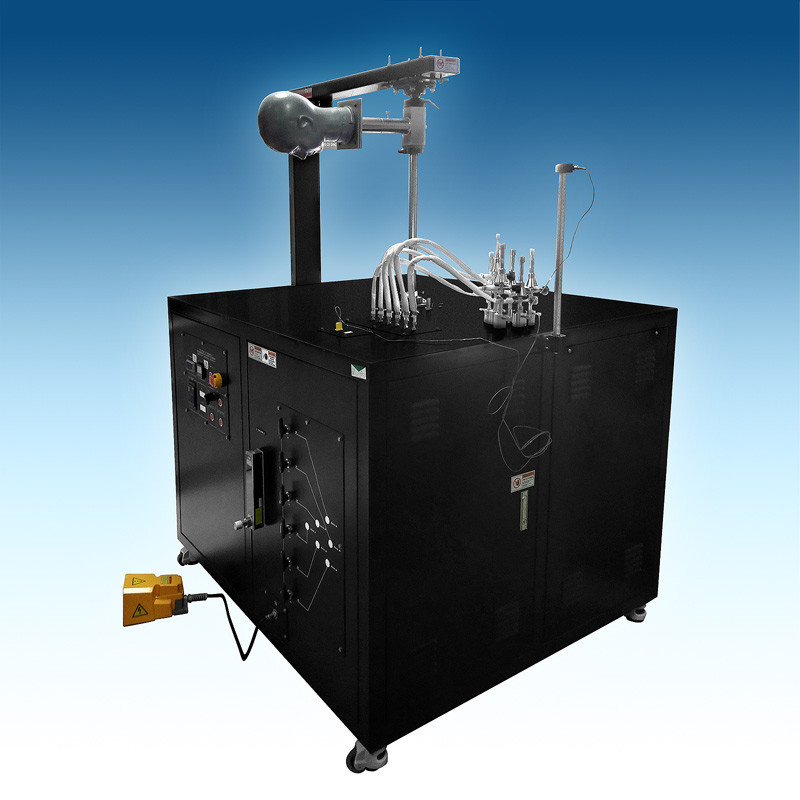

EN 136 Full Face Mask Flame Resistance Tester With 6 TEKLU Burners

Product introduction

Full Face Mask Flame Resistance Tester is suitable for testing the combustion resistance of self-contained open-circuit compressed air respirator (air respirator) in EN136 standard. The combustion performance of air respirator can be tested by means of 6-point burning or single-point burning flame impact.The flame retardancy tester is mainly used to test the flame retardancy of the comprehensive protective mask after six different parts of the flame ignited at the same time for a certain time. It is a special testing instrument for the flame retardancy of the comprehensive protective mask.

Product parameters

1. Full Face Mask Flame Resistance Tester is equipped with the first metal texture simulation device, it can be used for wearing air respirator device.
2. The tester is equipped with K-type thermocouple, which is placed at 250mm on the top of the highest burner and can detect the temperature of 950 + 50 degrees.
3.Full Face Mask Flame Resistance Tester has 6 TEKLU burners, the height of each burner can be adjusted by itself.
4. The gas flow rate supplied to the burner can be adjusted and controlled by a rotor flowmeter.
5. The pressure regulating device can adjust the pressure supplied to the burner to 10-50KPA.
6. Metal texture simulation head can be rotated, and the rotation speed can be adjusted to meet the standard test requirements.
7. Single-point combustion and six-point combustion can be realized, and can be tested according to different standards.

Product details

1. The mask fixture is a metal human head model, which can fully simulate the actual use of the mask.
2. The burner is equipped with a propane gas interface.
3. The height of burner flame can be adjusted.
4. The face mask head die fixture can be adjusted in both vertical and horizontal directions at will.
5. Automatic recording of ignition time and digital display.
6. Full Face Mask Flame Resistance Tester adopts flame temperature measuring probe and flame temperature display.

Product parameters

Total gas flow rate of six igniters	(21±0.5) L/min
Ignition time timer	0-99.99 seconds,±0.01 seconds
Diameter of flame temperature measuring probe	1.5mm
Test Standard of Full face Mask Flame Resistance Tester	CSN EN 136:1998 GB/T 16556:2007
Temperature of the flame at 250mm from the top of the burner	(950±50)℃
Distance between the top of the burner and the six ignition points of the mask	250mm
Metal die wall thickness	2-3 mm, flame resistance and combustion resistance
Dimensions	1200mm (W) x 700mm (D) x 1,900mm (H)
Weight	176KG
Electrical requirements	AC220V, 50Hz, 50W
Gas requirements	propane gas
