    ASTM D566 Lubricating Grease Dropping Point Tester Apparatus (Oil bath)

    Ask Lasest Price
    Brand Name : AI
    Model Number : DPT-M
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 sets per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    ASTM D566 Lubricating Grease Dropping Point Tester Apparatus (Oil bath)

    Lubricating Grease Dropping Point Tester


    Introduction
    The Dropping Point Tester is designed and made as per the national standard of People’s Republic of China GB/T 4929 Lubricating grease- Determination of Dropping Point and ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.

    I. Main technical features
    1. The oil bath is composed of heat resistant beaker, heater and electric motor. The heating power can be adjusted continuously. The temperature in oil bath is uniform..
    2. Desktop structure. Easy to operate.

    II. Main technical specifications of Dropping Point Test Apparatus

    1Power supplyAC 220 V±10%, 50 Hz
    2Oil bath600 ml beaker
    3Grease cupMade of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm.
    4Test tubeA tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup.
    5Thermometer-5℃~300 ℃,scale value is 1 ℃. Its total length is 390 mm and the depth immersed is about 76 mm.
    6HeaterTubular. Power 800 W.
    7Stirring motorRotating speed 60 RPM
    8Ambient temperature-10℃~+40 ℃
    9Relative humidity≤85%
    10Maximum power consumption900 W
    11Dimension350mm×180mm×410mm

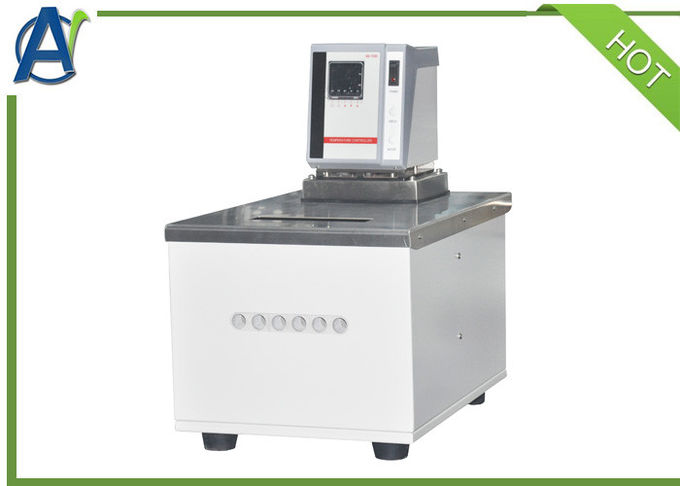

    Picuture of Dropping Point Tester over Wide Temperature

    ASTM D566 Lubricating Grease Dropping Point Tester Apparatus (Oil bath)
