Gasoline and Crude Oil Test Equipment for Vapour Pressure Test ASTM D323

Ask Lasest Price
Brand Name :	AI
Model Number :	VPT-R4
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	200 sets per month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

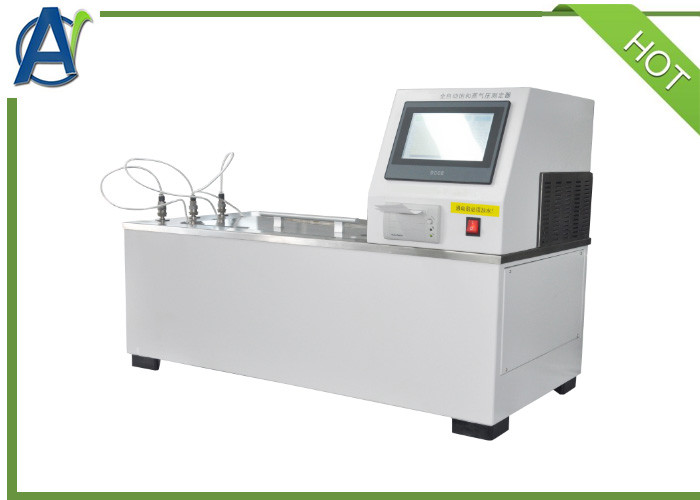

Gasoline and Crude Oil Test Equipment for Vapour Pressure Test ASTM D323

ASTM D323 Gasoline and Crude Oil Vapour Pressure Test Equipment

VPT-R4 vapour pressure tester.pdf

Summary

This vapoure pressure test equipment is mainly used to determine vapour pressure of gasoline, volatile crude oil and other volatile petroleum products. It can not be used to determine the vapor pressure of LGP.

Filling cooled oil sample into gasoline chamber,and connect with air under certain temperature.

I. Main technical features

1. Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.

2. VPT-R4 Vapour Pressure Test Equipment is made by cold-rolled sheet,surface treated by Electrostatic spraying.It’s corrosion resisting and easy to clean.

3. It adopts butt welding technology,so there isn’t welding spot on the surface.It’s beautiful and clean.

4. It adopts imported pressure transmitter,with high accuracy of pressure displaying

5. Complete stainless steel inner water tank can prevent rust very well.

6. Imported quick connector is convenient and sealed tightly.

II. Main technical specifications

1	Applicable standards	GB/T8017 ASTM D323 ISO3007 NFM07007
2	Temperature controlling method	imported PID digital temperature controller
3	Temperature controlling accuracy	37.8±0.1℃
4	Oscillating mode	horizontal automatic,no need manual operation
5	Working units	two oxygen bombs
6	Pressure correction	precise pressure adjust device is connected externally,and micro-adjusting function is set inside.
7	Connection mode	imported stainless steel quick connector makes no leakage
8	Power consumption	1.5KW

Photos of other models vapoure pressure test equipment

Gasoline and Crude Oil Test Equipment for Vapour Pressure Test ASTM D323
