ASTM D611 Automatic Aniline Point Tester for Petroleum Analysis Laboratory

Ask Lasest Price
Brand Name :	AI
Model Number :	AIC-262A
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Delivery Time :	30 days
Supply Ability :	100 Sets per Month

Add to Cart

Product Details
Company Profile

ASTM D611 Automatic Aniline Point Tester for Petroleum Analysis Laboratory

Automatic Aniline Point Tester

ASTM D611 Automatic Aniline Point Tester for Petroleum Analysis Laboratory

Introduction

The Automatic Aniline Point Tester is used to determine the aniline point of petroleum products and hydrocarbon solvents, as well as the mixed aniline point of the aforementioned products when the sample's aniline point is lower than the crystallization temperature of aniline in the aniline-sample mixture. It is suitable for determining the bubble point, which is higher than the sample's cloud point, of transparent samples with initial boiling points higher than room temperature and aniline points lower than the crystallization temperature of aniline in the aniline-sample mixture.

I.Main Features

◆Four test modes of AIC-262A Aniline Point Tester:

Standard measurement mode (SP);

Rapid measurement mode (QP);

Search measurement mode (SR);

Special oil sample measurement mode (TP)

◆Automatic temperature rise,heat preservation,temperature reduction, dimming, automatic display and save test results

◆ Automatic Aniline Point Tester has self-diagnosis and self-protection procedures

◆ Can store 99 sets of test data

◆ With print interface, RS-232C interface

◆ Display content: date, clock; sample number (sample number) test mode;sample temperature;Light receiving amount; fault content

◆Print content, input before printing: sample number, the printed content is as follows:

1) Sample date;

2) Sample number;

3) Test mode;

4) Expected aniline point (not printed in "SR" mode);

5) Measured aniline point;

6) Detection method

II. Main technical specifications

Item	Specification
Model	AIC-262A Automatic Aniline Point Tester
Measuring range	40℃ ～ 170℃
Accuracy	Light petroleum ±0.2℃;Dark petroleum ±0.4℃
Temperature sensor	Pt 100 Platinum resistance
Display screen	VFD Plasma fluorescent display
Output	Parallel print interface(Printer UP-A24P);RS232 communication port
Power supply	AC220V 50HZ
Total power consumption	100W

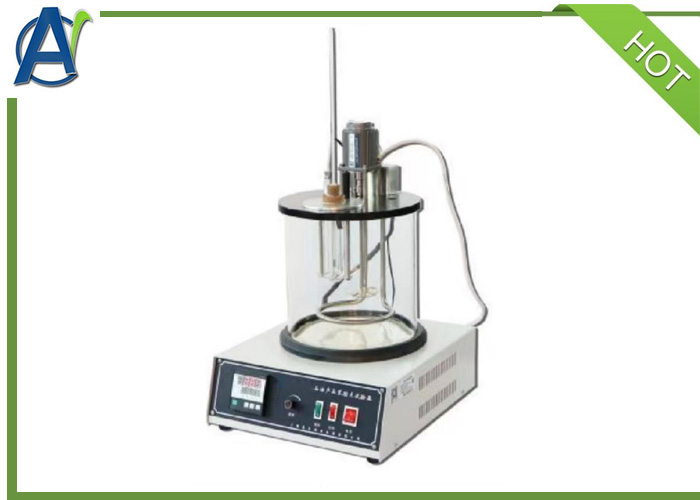

Photo of Manual Type Aniline Point Tester
