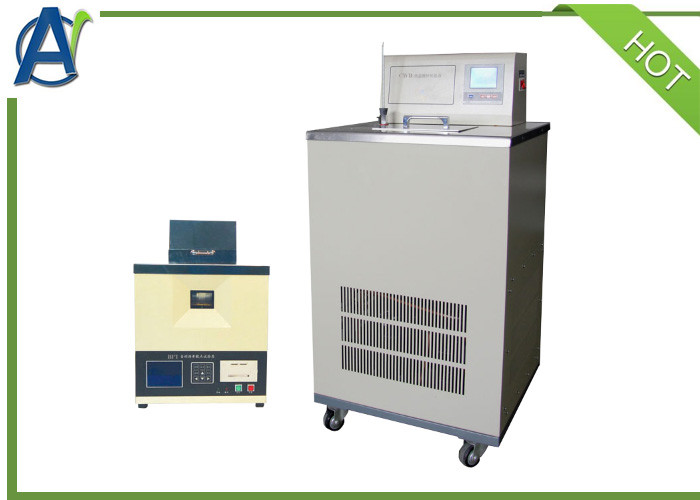

Automatic Fraass Method Breaking Point Testing Equipment for Asphalt

Automatic Fraass Method Breaking Point Testing Equipment

Summary

This breaking point testing equpment is used to determine the temperature which a bitumen tends to break rather to flow when cooled and stressed as per standards GB/T 4510 and JTG E20-2011. It can do three tests at the same time in the same environment and calculate the average value. The cooling rate is controlled by computer.

I. Main technical features

The frass method breaking point testing equipment is controlled by micro computer. The cooling rate is controlled automatically. It automatically timing to bend samples. The test data is shown on the colored LCD and outputted by built-in printer.

II.Specifications:

1	Power supply	AC(220±10%)V,50Hz
2	Refrigeration mode	Low temperature circulatory bath
3	Cooling rate	(1±0.5)℃/min
4	Temperature measuring range	-30℃～25℃
5	Temperature measuring error	±0.5℃
6	Steel slice	41mm×20mm×0.15mm
7	Test samples	It can determine 3 samples at the same time.
8	Ambient temperature	Room temp. ～+30℃
9	Relative humidity	≤85%
10	Power consumption	450W(breaking point tester)+ 1600W(low temperature circulatory bath)
11	Overall dimension	500mm×400mm×570mm(breaking point tester)

Note: We can customize the breaking point tester with measuring range:-40℃～25℃

III.Accessories

No.	Name	Unit	Qty
1	Automatic Breaking Point Tester	Set	1
2	CWB-15 Low Temperature Cyclic Thermostatic Water Bath	Set	1
3	Stainless steel sample piece	Piece	6
4	Rubber pipe(Ф10×1 meter)	Piece	2
5	Insulated sponge pipe(Ф15×1 meter)	Piece	2
6	Operation manual	Piece	1
7	Low temperature cyclic thermostatic water bath usage	Piece	1

Automatic Fraass Method Breaking Point Testing Equipment for Asphalt
