Brookfield Viscometer Bitumen Viscosity Test Apparatus ASTM D4402

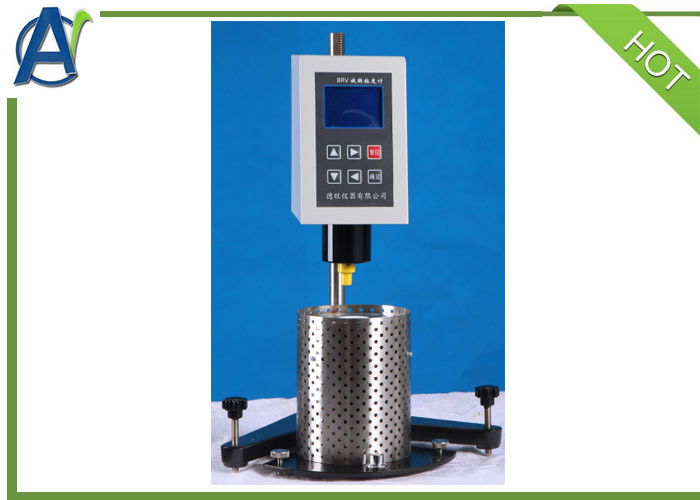

BRV Brookfield Rotational Viscometer

Summary

The asphalt brookfield viscometer is designed and made as per T 0625-2011 “Asphalt Brookfield Rotational Viscosity Test (Brookfield Viscometer Method)” in the Industry Standard of People’s Republic of China JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids. It can be widely used to determine viscosity of asphalt, hot melt adhesive, paraffin, high polymer, and various fluids.

I. Main technical features

1. The rotational brookfield viscometer adopts advanced mechanical design technology and manufacturing process, using micro-computer technology to control speed, collect data and process data. Accurate data acquisition, high sensitivity, reliable test results, easy to use, and good looking.

2. Display selection of white backlight, high brightness LCD display, can directly display the viscosity of the sample, the number of the rotor, speed and other information, data display clear.

3. The test data can show on the screen real time and also output by printer. In addition, the brookfield viscometer can also connect with PC via RS232 communication port.

4. Choose different models can have different ranges, for measuring different samples.

II. Main technical specifications

1	Measurement range	100 mPa•s～2×105 mPa•s (If you select the No.30 spindle, the measurement range can be extended to 4×105 mPa•s)
2	Rotor Specifications	No.21, 27, 28 and 29 total 4 pieces of spindles (the No.30 spindle is optional)
3	Rotor speed	(5,10,20,50)r/min
4	Measurement error	±1% (F•S); (If you select the No.30 spindle, it will be ±3% (F•S)
5	Temperature control range	45 ℃～200 ℃
6	Temperature control accuracy	±0.1 ℃
7	Sample cylinder	20 ml
8	Print output	Needle printer
9	Communication with the PC	RS232 interface
10	Power supply	AC 220V±10%, 50 Hz
11	Ambient temperature	5 ℃～35 ℃ (when the controlling temperature is close to ambient temperature, please run the air conditioner to let the ambient temperature be 5 ℃ lower than the controlling temperature)
12	Relative humidity	≤80%

III.Accessories list

No.	Name	Quantity
1	Head of viscometer	1 Set
2	Pedestal of instrument (having three level adjustment bolts)	1 Set
3	Toothed rod	1 Piece
4	Auxiliary controlling case (containing a temperature controller and a micro-printer)	1 Set
5	Heater	1 Piece
6	Spindle (No.21, 27, 28 and 29)	1 for each
7	Connection hook and transition bolt	1 for each
8	Power supply wire (250 V 6 A)	1 Piece
9	Serial port wire	1 Piece
10	Heater connection wire	1 Piece
11	Sensor wire	1 Piece
12	Sample cylinder, sample cylinder holder, sample cylinder cover, special forceps	1 Piece
13	Fuse (Φ5×20) 5 A	3 Pieces
14	CD for communication with a PC	1 Piece
