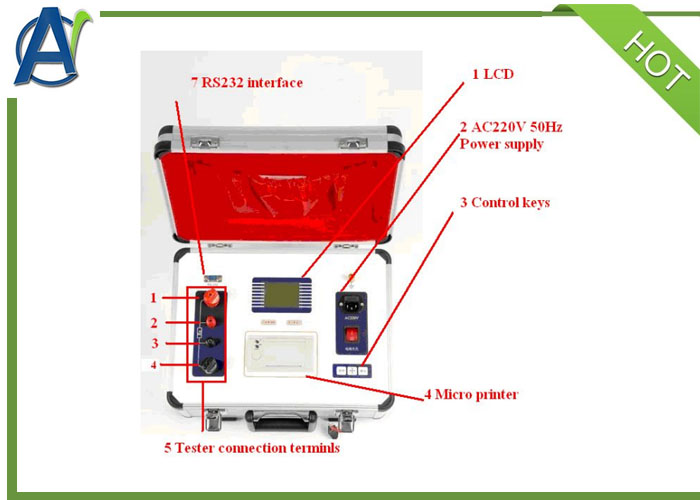

600A Coil Resistance Test Instrument

Introduction:

Coil resistance test instrument is used to test the contact resistance of circuit breaker or high current cable contacts.
The loop resistance tester is designed according to IEC62271.
The main application of the test equipment is measurement of circuit breaker contact resistance.
All the test results of low resistance test equipment setcould be print by the micro-printer which is integrated in the tester.
Also all the test results saved in the low resistance test equipment could be uploaded to PC computer and then convert to MS WORD document.

Features:

Specifications:

1	Measuring range	0-1999.9 μΩ Resolution:0.1 μΩ
2	Measuring current	DC 100A/200A/400A/600A for different selection
3	Measuring precision	0.5 %RGD+0.05%FS
4	Display mode	LCD
5	Data storage	Save no more than 100 groups of data
6	Data connection	RS232 computer interface
7	Rated power supply	AC220V
8	Size	340mm× 280mm × 210mm
9	Environment temperature	-10 ℃~+40 ℃
10	Relative humidity	<80%

Package list
