IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires

Ask Lasest Price
Brand Name :	AI
Model Number :	AIJLD-10
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100 sets per month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

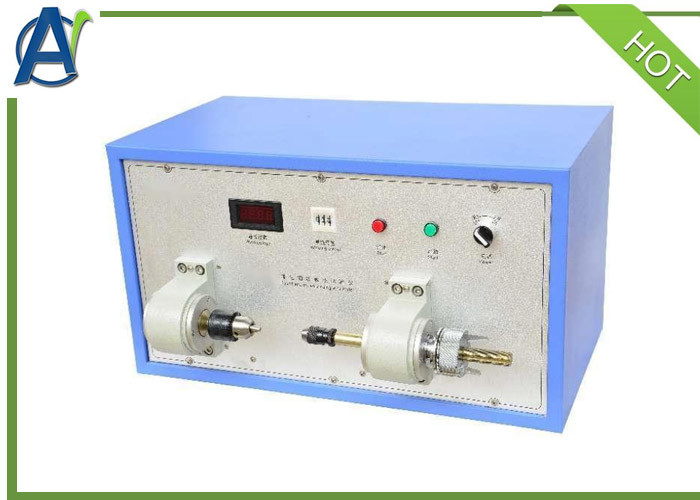

IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires

Performance Characteristics
1.Executive standard: GB/T4074.3-2008,IEC60851-3;
2.Inspection standard: JB/T4279.5-2008
3.This Jerk Test Tool is used to measure the film adhesion property of enameled round wires with nominal conductor diameter of 1.000mm and below;
4.Built-in small ultra-quiet air compressor would provide power supply and automatic constant pressure;
5.When the sample is pulled abruptly, it will not move or slip;

Technical Parameters

Jerking speed	≥3m/s
Start distance between two clamps	250±1mm
Maximum moving distance of movable clamp	125mm
Working pressure	0.4~0.8MPa
Input power	AC220V±10% 50Hz
Power consumption	<150W
Overall dimensions	L×W×H 650×405×425mm
Weight	55kg
