IEC 60851-3 Winding Wires Winding Test Apparatus For Enameled Round Wire

Ask Lasest Price
Brand Name :	AI
Model Number :	AIJR-16A
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100 sets per month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

IEC 60851-3 Winding Wires Winding Test Apparatus For Enameled Round Wire

Performance Characteristics
1.Executive standard: GB/T4074.3-2008,IEC60851-3
2.The winding test apparatus is suitable for measuring the flexibility, adhesiveness, thermal shock and other performances of the film of enameled round wire with nominal conductor diameter below 1.600mm;
3.Used with JRB-16 enameled round wire winding test bar;
4.This winding test apparatus can set any number of winding turns;
5.LED would automatically display and record the number of winding turns.
6.The application of high-end SCM control allows for simple operation, steady and stable performance.

Major Technical Parameters

Winding speed	100±10r/min
Number of winding turns	1~999r optional
Input power	AC220V±10% 50Hz
Power consumption	≤100W
Overall dimensions	L×W×H 640×345×350mm
Weight	40kg

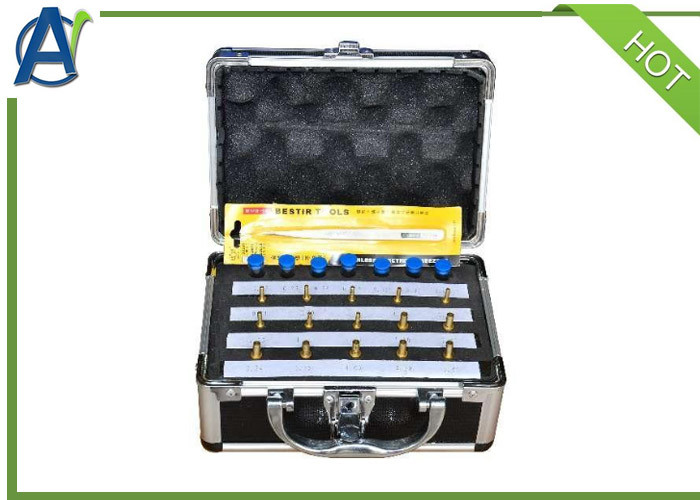

Preparation of weights:
Mini-weight hook 0.1N×1, mini-weight 0.1N×2, 0.2N×1 and 0.5N×1
Large-weight hook 1N×1, large-weight 1N×2, 2N×1 and 5N×3

IEC 60851-3 Winding Wires Winding Test Apparatus For Enameled Round Wire
