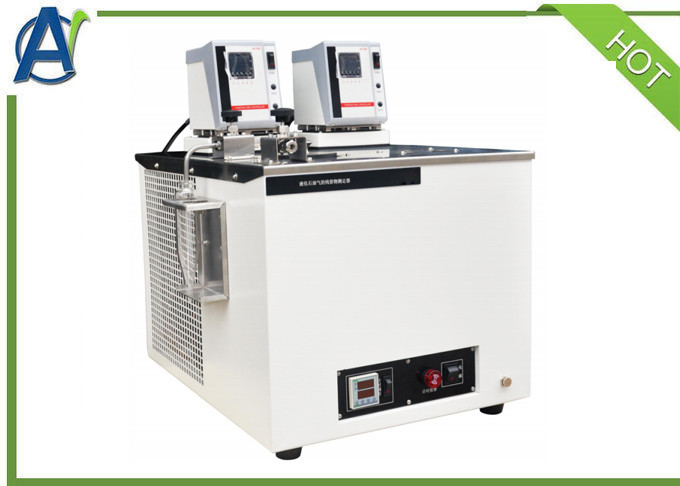

ASTM D2420 LPG Hydrogen Sulfide Test Instrument For Liquefied Petroleum Gas

Introduction

This ASTM D2420 LPG Hydrogen Sulfide Test Instrument is used to detect the presence or absence of hydrogen sulfide in liquefied petroleum gas. The lower limit of detection of hydrogen sulfide is 4mg/m3.If methyl mercaptan is present on the lead acetate test strip, it will produce a short-term yellow stain, but it will disappear completely in less than 5 minutes.Other sulfides in liquefied petroleum gas do not interfere with this test.

I. Main features

◆ The test glass tube meets the requirements of the standard, with a glass hook inside.

◆ LPG Hydrogen Sulfide Test Instrument Provides 500ml stainless steel sampler.

◆ The gas passes through the thermal evaporation bath and the needle valve adjusts the flow.

◆ LPG Hydrogen Sulfide Test Instrument adopts imported Omron PID temperature controller, digital continuous display temperature, accuracy 0.1℃.

II.Technical specifications

Applicable Standard	ASTM D2420, SH/T0125
Heating mode	Electric heating tube
Temperature controlling mode	Digital PID thermostat
Flow control	Needle valve adjustment, flow meter displays flow
Power supply	AC220V/ 50HZ
Total power	1000W
Dimension	440310600mm
Weight	20KG

III.Pacakge list

No.	Name	Quantity	Unit
1	LPG Hydrogen Sulfide Test Instrument	1	Set
2	Fuse 20A	4	PC
3	Sampling cylinder 500ml	1	PC
4	Glass hook	1	PC
5	Fuse 20A	4	PC
6	Rubber stopper 10#	1	PC
7	Glass cylinder	1	Set
8	Watch glass	1	PC
9	Glass connecting pipe	1	Root
10	Breathing pipe	1	PC
11	Test strip	1	Box
12	User manual	1	Copy

Factory view
