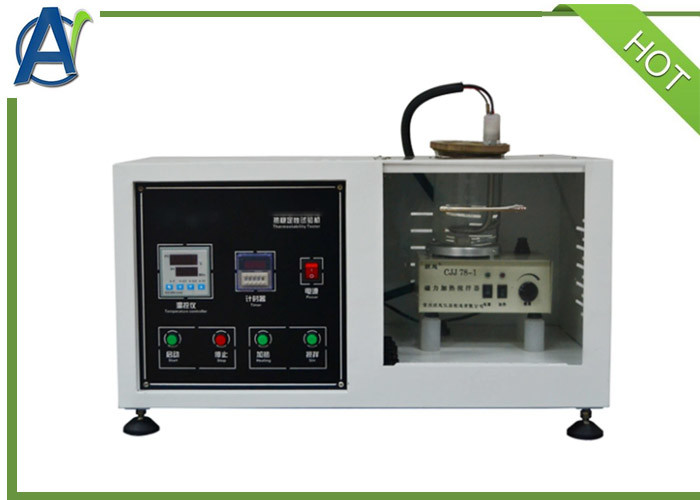

    En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds

    Ask Lasest Price
    Brand Name : AI
    Model Number : AIC42023
    Certification : ISO
    Price : Negotiable
    Payment Terms : D/P, T/T, L/C, Western Union
    Supply Ability : 100 Sets per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds

    Product Description:
    Thermal stability Tester is designed according to GB/T 2951.32-2008< insulating and sheathing materials of electric and optical cables-Thermal stability test>, used for wire and cable PVC compounds insulating and sheathing test.

    Standard:
    • GB/T 2951.32-2008
    • GB/T 8815-2008


    Installation Requirements:

    1Temperature rangeroom temperature ~ 250 ºC
    2Temperature Resolution0.1 ºC
    3Heater power1.5KW
    4Glass beakers1000ml
    5Small tubelength 110mm, outer diameter 5mm, inner diameter 4mm, one end sealed
    6Big tubeinner diameter 12mm, outer diameter 14mm,height 95mm
    7PH test paperCongo red
    8Working stationssix groups
    9Overall dimensions700×400×670mm
    10Power supplyAC 220V 50/60HZ 7A
    11Test oil(provided by users)

    En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds
