ASTM D6079 High-Frequency Reciprocating Rig Lubricity Testing Equipment Evaluating Diesel Fuel Lubricity

Ask Lasest Price
Brand Name :	AI
Model Number :	HFRR
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100 Sets per Month
Delivery Time :	50 days

Add to Cart

Product Details
Company Profile

ASTM D6079 High-Frequency Reciprocating Rig Lubricity Testing Equipment Evaluating Diesel Fuel Lubricity

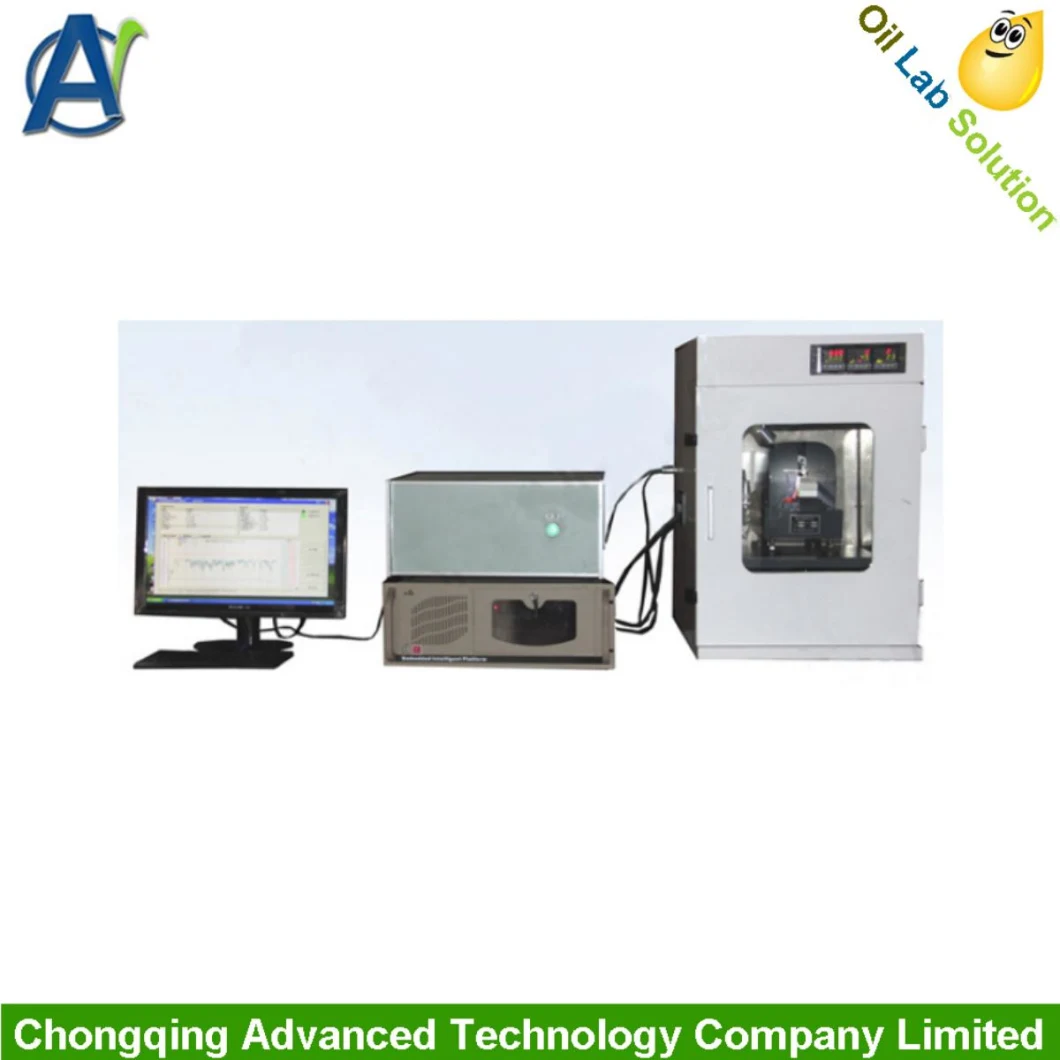

ASTM D6079 High-Frequency Reciprocating Rig Lubricity Testing Equipment

Summary

All diesel fuel injection equipment uses diesel as a lubricant to some extent. Excessive friction causes wear and tear to shorten the life of engine components such as diesel fuel injection pumps and fuel injectors. Diesel lubrication is one of the reasons. The experimental results of HFRR Lubricity Tester have a good correlation with the lubrication problems of diesel and related equipment, and can properly predict the lubricating performance of diesel.

I.Main Features

1, Automatically controlled by computuer, windows operating system, Chinese or English interface, automatic shutdown after the test is completed;
2, The standard test steel ball, diameter 6mm, the material is AISI E-52100 steel, Rockwell hardness HRC is 58~66, surface roughness Ra<0.05 μm;
3. The standard test piece is made of round steel conforming to AISIE-52100 specification, the Vickers hardness "HV30" grade value is 190-210, and the surface roughness Ra<0.02μm;
4, HFRR Lubricity Tester is equipped with automatic temperature and humidity control device;
5, Microcomputer temperature controller, PID program temperature control, PT100 temperature sensor, high precision;
6. The vibration exciter produced by aerospace technology has high precision of stroke frequency;
7, Electronic image analysis microscope, can be magnified 100 times, indexing 1μm, supporting special analysis software;
8. Convenient fixture device for easy operation and cleaning;
9. An ultrasonic cleaner is supplied with HFRR Diesel Fuel Lubricity Tester

II. Main technical specifications

Item	Specification
Model	HFRR Lubricity Tester
Applicable standard	ASTM D6079 ,ISO12156, SH/T0765
Heating method	Metal bath
Tempeature control accuracy	±0.1ºC
Test temperature	ambient~150ºC,arbitrary adjustment
Test load	200±1g,including weight 0.1~1KG
Surface area of oil tank	600±100mm2
Diameter of test ball	6mm
Volume of oil sample	2.0±0.2ml
Stroke	1.0±0.02mm
Frequency	50Hz
Controll method	Automatically controlled by computer
Power supply	AC220V 50HZ
Total power consumption	1000W

Chongqing Advanced Technology Co., Ltd. is a professional supplier which is committed to offer best testing equipment from China for our clients, and our main products are fire testing equipment, petroleum products testing equipment, electrical testing equipment and general laboratory instruments.

Our instruments are widely used in various fields: Scientific institutions, colleges, inspection institutions, automotive, power sector, oil&AMP; Gas, aerospace, building material, wire and cable, furniture, textile etc. All Advanced Technology′s testing equipment are designed according to international test standards, such as ISO, ASTM, IEC, DIN, EN, GB, JIS, ANSI, UL, TAPPI, AATCC, VDE, CSA, CEN and so on.

Factory overview

Customer Feedback

Germany

ASTM D6079 High-Frequency Reciprocating Rig Lubricity Testing Equipment

USA

ASTM D6079 High-Frequency Reciprocating Rig Lubricity Testing Equipment

Packing: standard export carton/ wooden case per set.
Delivery method: usually delivered by express or air, other method are also available if necessary.

FAQ

1.What's the delivery time?
About 30 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
