Product Description

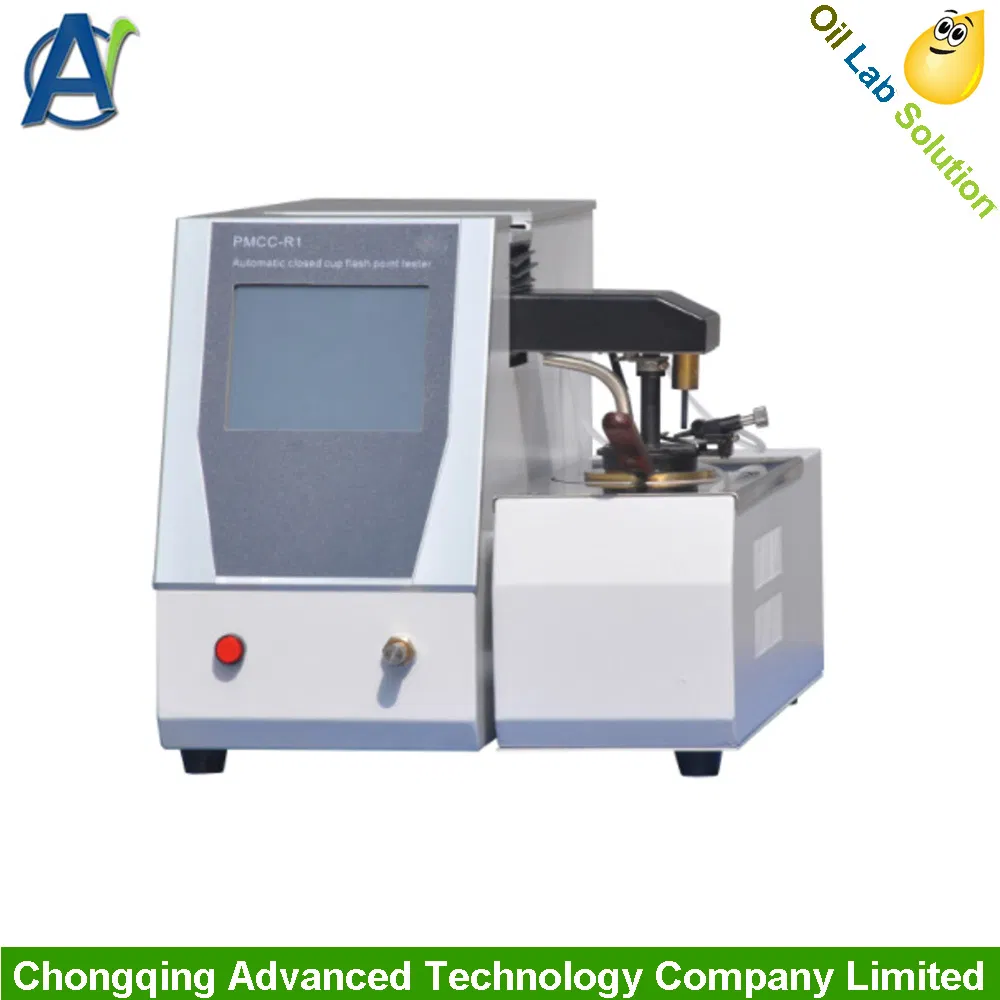

ASTM D93 Automatic PMCC Flash Point Analyzer
According to GB261-83 and ISO2719-73 Closed Cup Flash Point Test
Method,this Pensky-Martens Closed Cup Flash Point Analyzer adopts
micro-computer processing technology and advanced PID temperature
controlling technology,with fast temperature rising speed,accurate
temperature controlling and test result.
This procedures of whole test is automatic,and it has functions of
automatic atmosphere correction,automatic lifting,automatic
temperature rising and switching,automatic opening cover and
ignition,automatic end point checking,automatic printing out test
result,automatic air cooling,automatic stop when over-heated.
Features of Automatic PMCC Flash Point Analyzer:
1.The Pensky-Martens Closed Cup Flash Point Analyzer is controlled by micro-computer,the whole test procedures and data
printing are automatically proceeded.
2.Big LCD screen display in English,showing test temperature,oil
number,test time etc.Whole test process is clear.
3.Micro-printer can print out the result with low cost
4.Temperature is raised by single-chip machine,which makes sure the
accuracy of test result
5.When the test is finished,the machine can be cooled automatically
by forced air.
6.The flame size can be adjusted
7.Automatic lifting system is easy to operate
8.It's made by cold-rolled sheet,surface treated by Electrostatic
spraying.It's corrosion resisting and easy to clean.
9.The Pensky-Martens Closed Cup Flash Point Analyzer can be operated by manual or automatically
10.Correction function:current date,time,temperature and atmosphere
11.It has protection and self-diagnosis procedures
12.Both main controlling and measuring parts are imported,to make
sure the reliability and stability.
13.The Pensky-Martens Closed Cup Flash Point Analyzer is compact,small and beautiful
14.High degree of automation:set flash point as per operation
method on LCD display screen,press "Start" key,the whole test will be proceeded automatically.
Technical Parameters of Pensky-Martens Closed Cup Flash Point Analyzer:
| 1 | Applicable standards | GB/T261, ISO2719, ASTM D93, DIN51751 |
| 2 | Display mode | LCD big screen in English |
| 3 | Display content | Control temperature and set temperature of expected flash point; Fault warning; Each simulated parameters and pressure setting |
| 4 | Measuring range | 40~370ºC |
| 5 | Measuring accuracy | ±0.1ºC |
| 6 | Accuracy | ≤104ºC±1ºC ,≥104ºC±2ºC |
| 7 | Repeatability | Flash point ≤104ºC,error ±1ºC Flash point ≥104ºC,error ±2ºC |
| 8 | Refrigeration method | forced-air cooling |
| 9 | Power supply | AC 220V±5%,50HZ |
| 10 | Power consumption | 380VA |
| 11 | Environment temperature | 10~55ºC |
| 12 | Environment humidity | 30~80% |
